日本Lyra Kleos 唱頭

Avantgarde-HK

Lyra 是世界上首創非對稱式結構唱頭的廠家, 這設計最成功係有效把針杆拾音時的諧震在轉換成訊號前已被消除. 實現最佳巡跡性能, 達至最佳重播效果.  另外, Lyra 發現當唱頭在工作時, 線圈( coil )往往會偏離原本設計時與磁鐵的位置, 嚴重影響訊號的準確度, 使音質劣化.  經過不斷研究, 計算及測試後, Lyra 設計出名為 New Angle 的裝配技術. 預先微調線圈的角度令加了針壓 ( 唱重) 後的線圈與磁鐵位置成平衡狀態, 減少誤差.  表現非凡!

Kleos 是Lyra 唱頭中, 中間偏下的型號.  也是長期暢銷型號.  皆因 Kleos 的性價本甚高, 其無阻隔、準確嘅聲音, 深受發燒友歡迎.  Kleos 屬於中等重量 (8.8g), 中柔順度 ( 12x10-6cm) 及低內阻 (5.4 ohm) 唱頭. 機身以整件7075鋁合金以超精確CNC 車床精密加工而成.  針杆選用高級硼 ( Boron) 配特別 line contact 鑽石針尖以固定坑槽配上, 確保針尖角度 準確無誤.  線圈方面, Kleos 採用6N純銅繞在方型超純度鐵芯, 有低輸出0.25mV 及0.56 mV以供選擇.

歡迎預約試聽!

insider

什麼價錢？

kl122002

我都想知幾錢....

Avantgarde-HK

Dear all,

PM sent!

Avantgarde-HK

An important element of cartridge design was developed by the Lyra team when developing their entry-level Delos. Lyra realized that a problem occurs when placing the stylus of a Moving Coil cartridge on the record's surface – the tracking force pushes the coils of the cartridge out of alignment so the magnetic signal no longer aligns with the coils. This occurs on a nearly microscopic level, yet this still affects the sound quality because this misalignment impairs the linearity of the signal coils and magnets. This problem might seem like a minor one, but Lyra found its implications in the final sound of the cartridge are far from minor, so the Kleos has also been designed with what Lyra terms "New Angle" technology.

racewong

fieldmice

Can pm the price for Delos and Kleos?
Thank you.

Avantgarde-HK

fieldmice 發表於 2020-10-5 09:56
Can pm the price for Delos and Kleos?
Thank you.

PM sent

9394999

may i know how much?

Avantgarde-HK

9394999 發表於 2020-10-5 17:30
may i know how much?

PM Sent

Avantgarde-HK

The Kleos weighs in at 8.8 grams (.8 more than the Helikon), the body machined from Duralumin, an aircraft-grade aluminum, with an attractive plated finish. Two press-fit specially tuned metal cylinders inserted into the body provide damping and resonance control. The Kleos is Lyra’s least expensive cartridge to include an Ogura .3mm diameter boron cantilever fitted with a Lyra spec’d low mass, 3x75 µm line contact stylus.

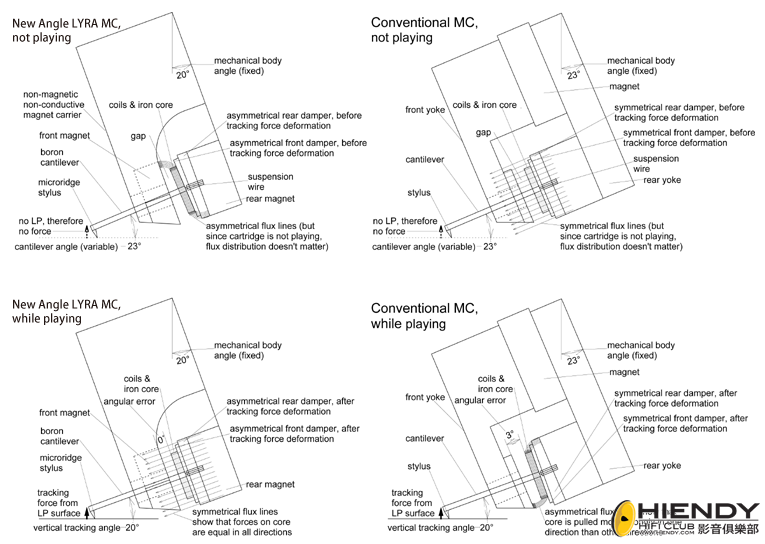

The new cartridge also includes Lyra’s “New Angle” dual neodymium disc magnet/coil alignment system that produces symmetrical flux lines during play instead of when the cartridge is at rest. For a visual representation go here.

Avantgarde-HK

The New Angle on LP Reproduction:
The Lyra Kleos MC Phono Cartridge

Although many MC cartridges have good performance, their sound is held back by how they are designed. The problem is, the signal coils should have the same angle as the magnetic circuit during playback, but MC cartridges are typically designed so that the opposite happens - applying normal tracking force pushes the coils out of alignment. This impairs coil sensitivity and linearity, and reduces sound quality.

Lyra's "New Angle" technology solves this fundamental problem by compensating for how the signal coils are affected by vertical tracking forces, and optimally aligning the coils when it matters most - during playback. Introduced on our entry-level Delos, the New Angle technology enables the Delos to perform well above its pricepoint.

But being audiophiles, we wanted to achieve the next higher level - which is the new Kleos. Building on New Angle technology, the Kleos innovates with a stronger chassis machined from aircraft-grade alloys, narrowed mounting area to improve energy transfer, and pre-stressed construction combining multiple materials with non-parallel surfaces to inhibit internal body resonances. The fully hand-made Kleos also has a Lyra-designed line contact stylus and platinum-plated output pins, achieving an exceptionally quiet noise-floor with superior immediacy, resolution and tracking, wide dynamic range and explosive transients, plus a warmer and natural tonal balance. The Kleos is a high-value cartridge that surpasses the sound quality of substantially more expensive cartridges.

Let the Lyra Kleos show you how good a New Angle on LP reproduction can sound.

Avantgarde-HK

The Kleos is the lowest cost Lyra cartridge to feature the full fledged Ogura manufactured boron cantilever and coil system with Lyra original line-contact (3 x 70μm) stylus. This is similar to what is employed on even the most expensive Lyra models.

Nevertheless, the most important element of the new Kleos is it's sound. We firmly believe that the Kleos is capable of extracting more information from the vinyl grooves than it's predecessors, and that the reproduction of music is both more dynamic, more detailed, and more natural than the models preceding it. We also are of the opinion that the Kleos will set a new standard for sonic performance at it's price point.

Avantgarde-HK

Lyra 唱頭其中一項獨特之處是線圈預先修改了落針後的角度差, 令唱針在巡跡時線圈和碰體保持絕對平衡,  特別準確, 音色特別真實!

Avantgarde-HK

在站係發燒友角度，設計師制作新的 Kleos 令它到更高的水平。基於New Angle 技術，Kleos 進行了創新，採用了由航天級合金加工而成的更堅固的唱頭底盤，改善體積以改善能量傳遞，以及將多種材料與非平行的表面結構，可抑制體內共振。完全手工製作的Kleos還具有Lyra設計的line contact 針尖和鍍鉑金輸出針腳，令Kleos異常安靜和低噪，具有出色的舜變，分析力和巡跡力，爆炸性動態以及溫暖自然的音色平衡度。 Kleos是相當出色，其音質能逺超過相當昂貴的唱頭。

Benwhli

請問幾錢

Avantgarde-HK

Benwhli 發表於 2021-5-17 09:09
請問幾錢

PM sent

Avantgarde-HK

Kleos 由實心 7075 鋁合金以精密 CNC 加工而成.  Kleos 設計特別為了減低唱頭頂部與唱殼表面接觸，唱頭部分亦設計成非平行形狀，相位干涉共振控制機構.  所以音染特低.

Benwhli

請問價錢

Avantgarde-HK

Benwhli 發表於 2021-8-4 21:56
請問價錢

http://www.avantgardehongkong.com/en/product/lyra/mc-cartridges
