Tonearm Club 唱臂 同好會

Poire

Want to share with you in terms of tonearm in any price range (low, mid high) employing various technologies (unipivot, linear trackers). Anyone is welcome!

Poire

Reed 2P 12" Ebony

Reed 2P 12" Ebony

Poire

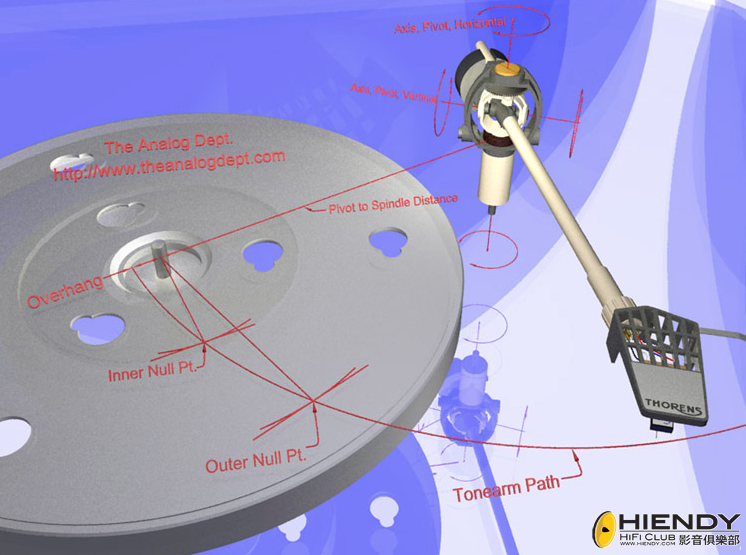

For details, visit http://www.theanalogdept.com/overhang.htm

Kraftwerk2

Audiomods Series III, a heavily modified RB 300 tonearm

Poire

Kraftwerk2 發表於 2013-3-27 17:31
Audiomods Series III, a heavily modified RB 300 tonearm

They look cool, how do they sound?

Kraftwerk2

Not available in HK but saw positive reviews. I actually is not a specislist in tonearm just post them for fun

Poire

Kraftwerk2 發表於 2013-3-28 09:44
Not available in HK but saw positive reviews. I actually is not a specislist in tonearm just post th ...

Not a problem at all, me too like everybody, we are all learning. Especially for tonearms, there are so much to explore.

The VTA on the fly is extremely useful, as you would adjust the high of cartridge while listening with lots of flexibility. We only find such feature a few high end tonearm for example: Tri-planar

The ceramic bearing sounds like the tonearm is made to address the natal issue of vinyl improving the signal to noise ratio. There are so many fine thinking about these models.

Love to hear them!

Poire

Dynavector DV-507

Poire

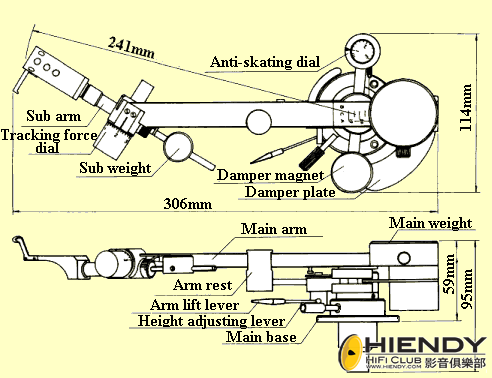

Dynavector DV-507 setting measurements

Poire

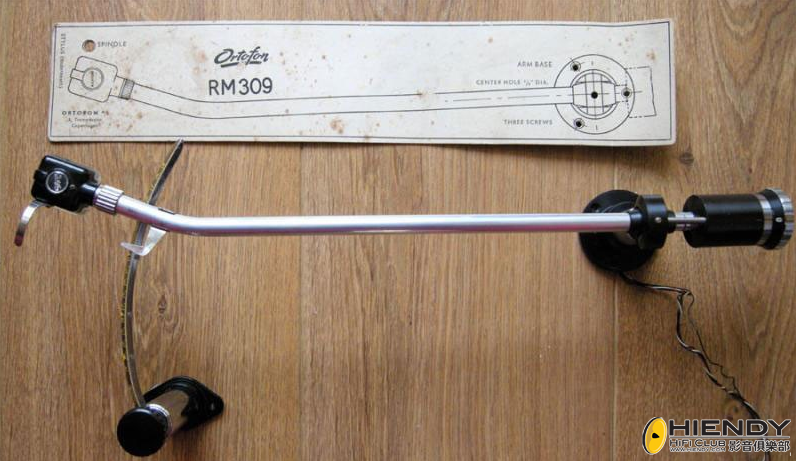

Ortofon RM309

Kraftwerk2

Scheu Analogue Cantus tonearm from Germany.

Poire

Kraftwerk2 發表於 2013-3-28 14:07
Scheu Analogue Cantus tonearm from Germany.

NIce!

Kraftwerk2

Thales Simplicity tonearm





The Simplicity is the little brother of the original Thales tonearm. Its geometry is based on a newly created tetragon solution which reduces the tracking error to a maximum of 0.008°. It uses the same bearing technology as the Thales tonearm. Six jewels and four subminiature ball bearings make sure that the friction and clearance are within our state-of-the-art tolerances. The intrinsic frequencies of the two tonearm tubes are carefully tuned up in inharmonic proportions to even top the damping properties of any single-arm design.

The Simplicity comes with a special tool to make sure the installation is as precise as the manufacturing. The headshell can be taken apart easily for exact placing of the cartridge. The surfaces of the tubes are bronze anodised, using 0.1g of a specific salt per litre electrolyte. All side forces are balanced by two small magnets.

Simplicity - tangential pivoted tonearm
- finest ruby bearing, six jewels
- optimised Burne-Jones-geometry, theoretical tracking error: ±0.008°
- hard-chrome plated cardanic bearings
- aluminium arms, bronze anodised finish
- removable headshell for easy installation of cartridge
- effective length: 9 inches
- effective tonearm mass: 19g.

Poire

Kraftwerk2 發表於 2013-3-28 16:07
Thales Simplicity tonearm

We are getting in the area of special tonearms.

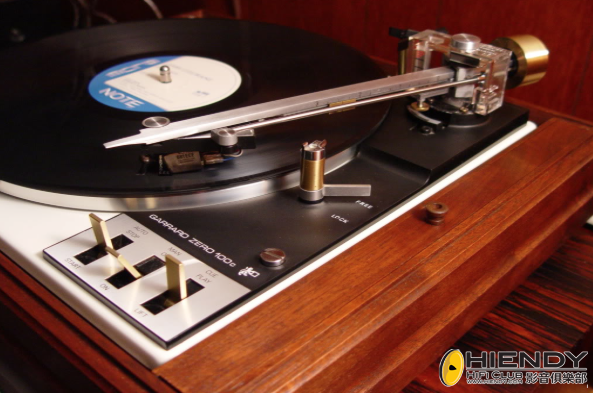

The classic Garrard Zero 100 had been the very first model employing the design idea.

Poire

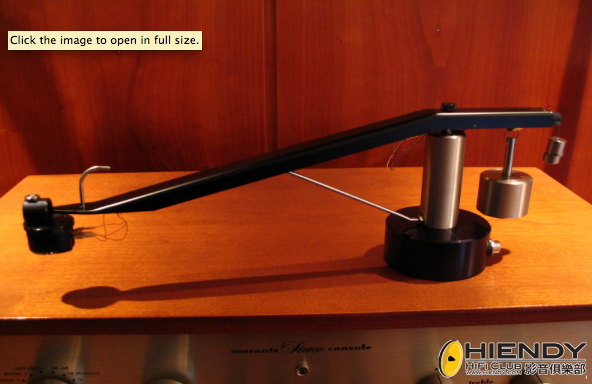

Apart from Thales, RS Labs RS-A1 has been one of the recent versions basing on the design concept.

Poire

Kraftwerk2 發表於 2013-3-28 16:07
Thales Simplicity tonearm

Also, there is a self rotate headshell featuring zero tracking error.

Poire

Another view

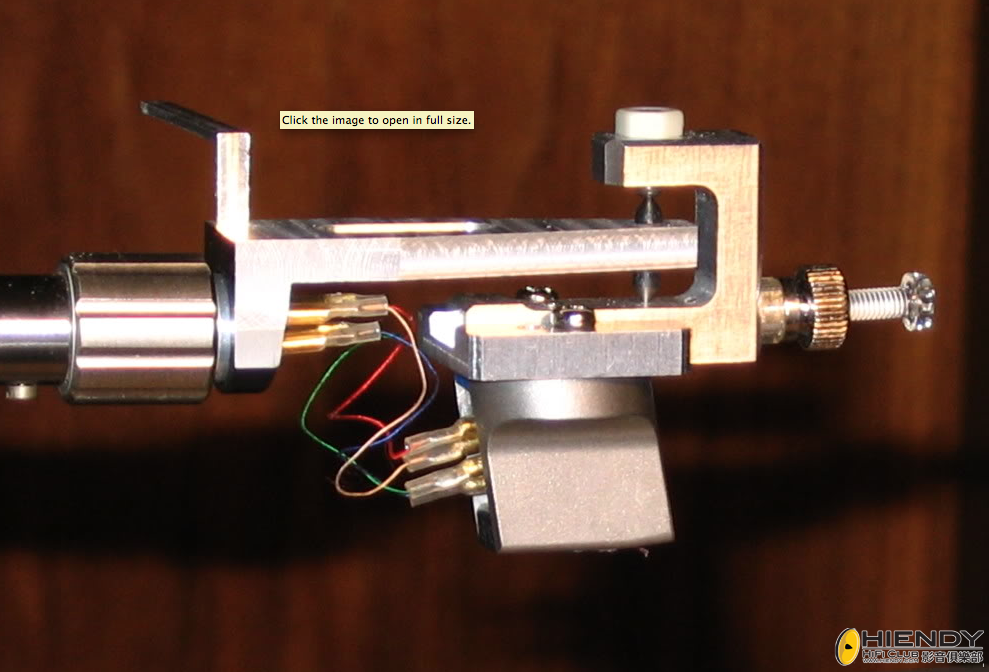

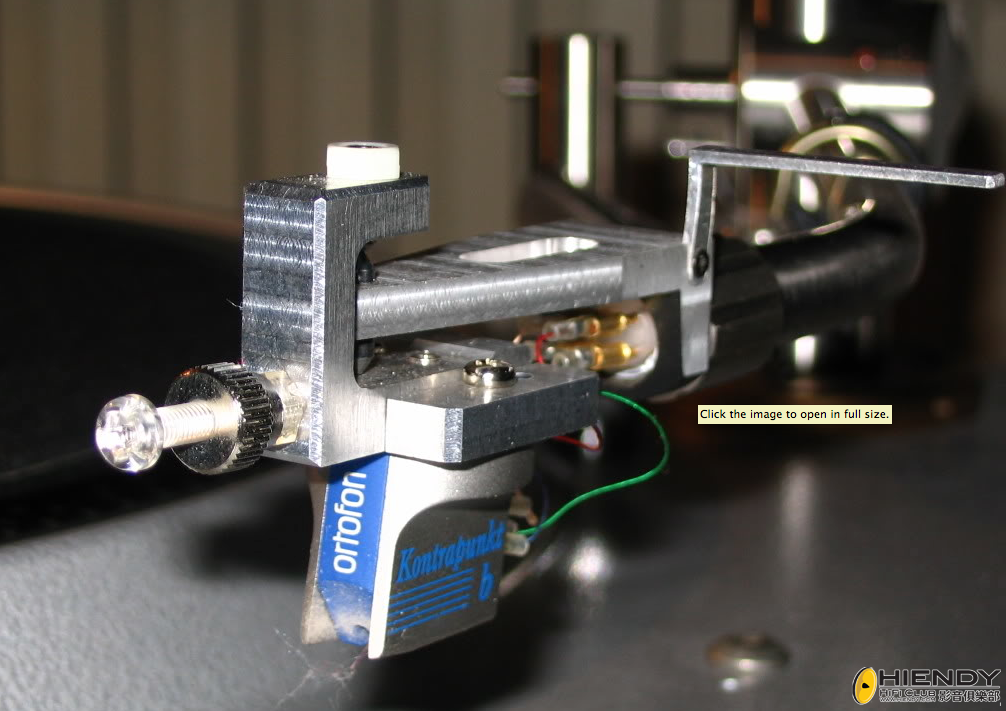

RS headshell

TChan

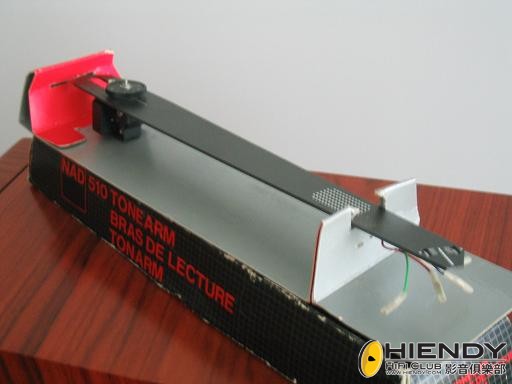

tonearm from NAD

Poire

TChan 發表於 2013-4-1 14:46
tonearm from NAD

This is nice!

Poire

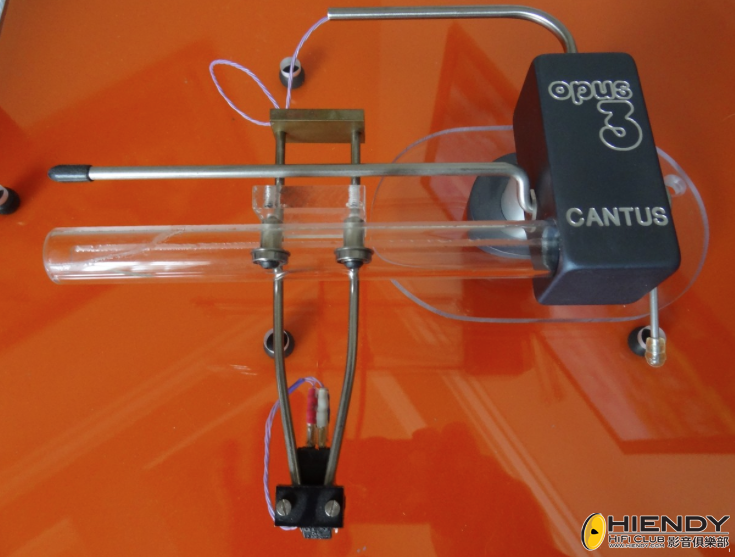

Opus 3 Cantus linear tracking tonearm
