發表於 2011-4-18 11:11:26
|
顯示全部樓層
回復 259# Chan206
Sonus Faber Amati Futura + Goldmund 22s preamp + Goldmund Telos600 / Telos1000 + a better CD/ SACD p ...
racewong 發表於 2011-4-18 11:02
Armati就不如Ktema啦！

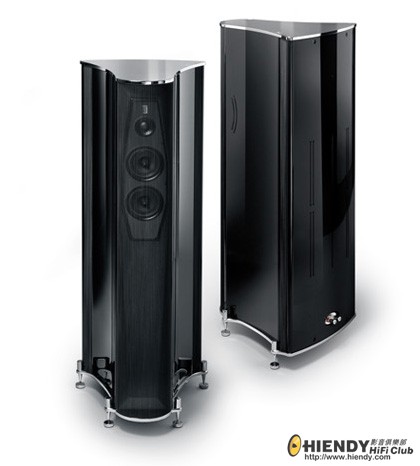

- Geometry: four-way topology, five units. The two low-frequency radiators are compression-loaded and room-interfaced at the lower part of the rear of the enclosure. Above the “fusion” frequency, the mid-high cardioid radiators reproduce the significant part of the spectrum, at the top section of the front of the cabinet.

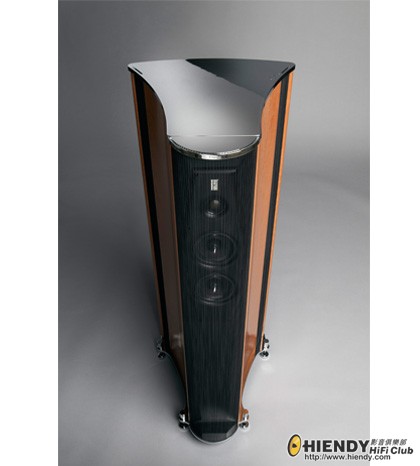

- The cabinet is a rigid, triple arch-shaped structure. The two lateral front cheeks are concave, while the woofer compressor is convex.
- The tweeter is a well-established and time-proven 28mm soft-dome unit, created by Ragnar Lian, one of the greatest Danish masters of transducer design.
- The midrange array consists of two custom-made 4in units in a step-compensated baffle, in a cardioid acoustic-resistance configuration, for the most accurate reproduction of the musical perspective.
- The woofers are custom-made 9in metal cone, piston performance-optimised units, in a compression-controlled and room-interfaced configuration.
- The crossover is a mutational variable slope, coherent spatial radiation design.
- Yter pure Silver-Palladium mono-wiring used throughout.
Frequency Response: 26Hz - 33Khz, in room
Nominal Impedance: 4 ohm (minimum 3, 2 ohm at 70 Hz)
Sensitivity: 92 dB/W/m
Minimum power amplifier: 20W per channel
Dimensions: 42,5 cm × 46 cm × 111 cm (unpacked)
52 cm × 57 cm × 110,5 cm (packed)
Weight: 110 kg/pair (unpacked) - 127 kg/pair (packed)

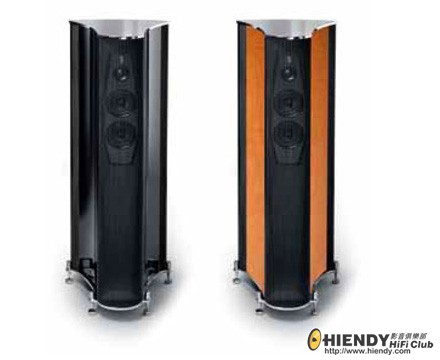

Finishing: High gloss piano black, hand-polished aluminium top & bottom
Satin Sycamore, hand-polished aluminium top & bottom |
-
|
樓主: Chan206
IP卡
狗仔卡
發表於 2011-4-18 11:02:12
顯身卡
...又係百萬2CH系統...
老陳萬歲!
