英國 ifi Zen Signature 6XX

Avantgarde-HK

Superior circuits. Superb sound.
Various key surface-mounted circuit components have been upgraded to high-end devices, including Panasonic OS-CON and Elna Silmic II capacitors.

The circuit has been refined to ensure short, direct signal paths for optimal signal purity. This results in even greater sonic detail and expression.

eagames007

好东西啊，这个最近很火。。。

Avantgarde-HK

eagames007 發表於 2021-3-29 14:12
好东西啊，这个最近很火。。。

謝謝支持!

Avantgarde-HK

Zen Signature 6XX 除了音質提升之外, 更附上一條 高級 4.4 - 4.4 連接線, 確保音質無損地傳遞.

Avantgarde-HK

The ZEN CAN Signature 6XX, features ActivEQ for the ‘MassDrop x Sennheiser HD 6XX’ – a popular pair of high-quality headphones with more than 120,000 sold to date, based on the Sennheiser HD 650 and created exclusively for Drop.com.

These headphones are renowned for the quality of their midrange performance but exhibit some quirks in the bass and treble regions, which can be seen in frequency response measurements.

Avantgarde-HK

專為Sennheiser HD 6XX 打做的 耳擴.  效果超正, 銷量驚人!

ActivEQ
This new feature, called ActivEQ, combines active and passive components to create a specific EQ curve to suit a particular pair of headphones, performed in the analogue domain without a hint of additional noise or distortion.

The ZEN CAN Signature 6XX, features ActivEQ for the ‘MassDrop x Sennheiser HD 6XX’ – a popular pair of high-quality headphones with more than 120,000 sold to date, based on the Sennheiser HD 650 and created exclusively for Drop.com.

These headphones are renowned for the quality of their midrange performance but exhibit some quirks in the bass and treble regions, which can be seen in frequency response measurements.

Avantgarde-HK

No pain, just gain.
The ZEN CAN Signature 6XX features four gain settings in six dB steps – 0dB, 6dB, 12dB and 18db.

This enables the amp to precisely suit the connected headphones. Unity gain (0dB) is useful to ensure low noise with sensitive in-ear monitors, while the higher gain settings make the most of tougher headphone loads, delivering excellent dynamic headroom.

Avantgarde-HK

EQ. Activated.
When the ‘HD 6XX’ button is pressed, the ZEN CAN Signature 6XX calibrates its signal to complement the headphone’s response characteristics right across the frequency range, thus tailoring its performance to precisely fit the HD 6XX like a made-to-measure suit. In particular, the 7kHz treble and bass below 500Hz is gently elevated.

What’s more, the benefits of this ActivEQ curve are equally applicable to the Sennheiser HD 650, which shares the same characteristics. It also has an effect on other Sennheiser models – take a look here.

This feature can be switched on or off. Without ActivEQ engaged, the ZEN CAN Signature 6XX’s performance is adroitly balanced to make the most of all manner of headphones and in-ear monitors.

Avantgarde-HK

Balance of power

The ZEN CAN Signature 6XX’s circuitry is a balanced, symmetrical dual-mono design – a topology usually reserved for high-end headphone amps – with a number of key elements trickled down from the discrete Class A circuitry developed for iFi’s flagship headphone amplifier, the Pro iCAN.

Key components have been upgraded to enhance performance in line with the improvements made to the ZEN CAN Signature 6XX, including the use of Panasonic OS-CON and Elna Silmic II capacitors.

Avantgarde-HK

The Signature Set was originally conceived as a special run for Drop, so, iFi knew the Signatures had to stand out in a competitive field of high-value headphone amps and DACs. In a fresh approach I have not seen before, iFi custom tuned the ZEN CAN Signature 6XX specifically for the Sennheiser HD6XX, the all-time best-selling headphone on Drop. In addition to its large user base, the sonic character of the HD6XX also made it a great target. As popular as the HD6XX is, there seems to be endless fervent discussion about its sound, often characterized as natural and intimate but light on bass. Essentially, a cosmetic update of Sennheiser’s long running HD650, the HD6XX is also known to shine with high quality amplification, especially tube amplifiers.





Features & Specifications

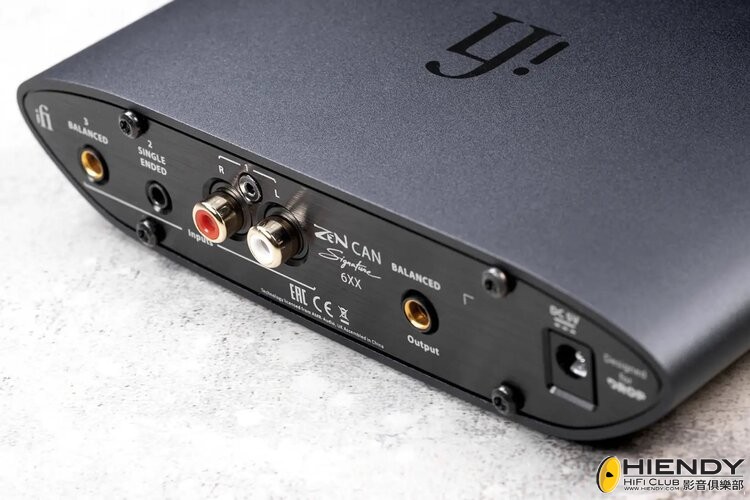

As expected for special edition electronics, iFi has upgraded a handful of critical components in the signal path of the ZEN Signatures. Where the Set also shines is flexibility. The pair of components has an impressive array of inputs and outputs. Both the CAN and DAC have a 4.4 mm balanced preamp output, with an additional RCA pre-out on the DAC. Fortunately, the outputs on the DAC are switchable between line and preamp mode.

Avantgarde-HK

ZEN Signatures: Quick Setup Guide
