Stereophile Recommended Component

Billy

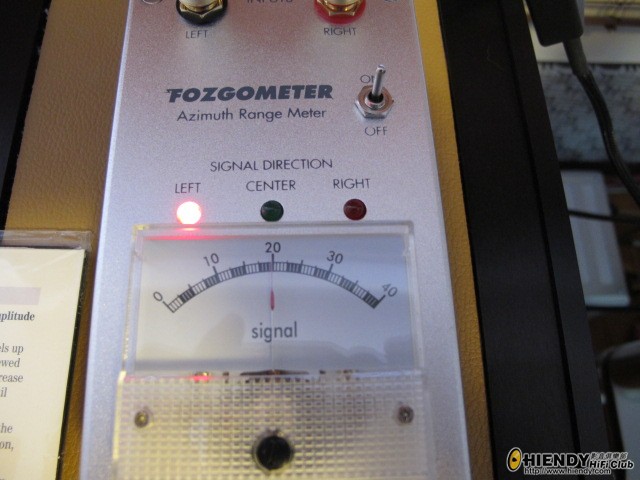

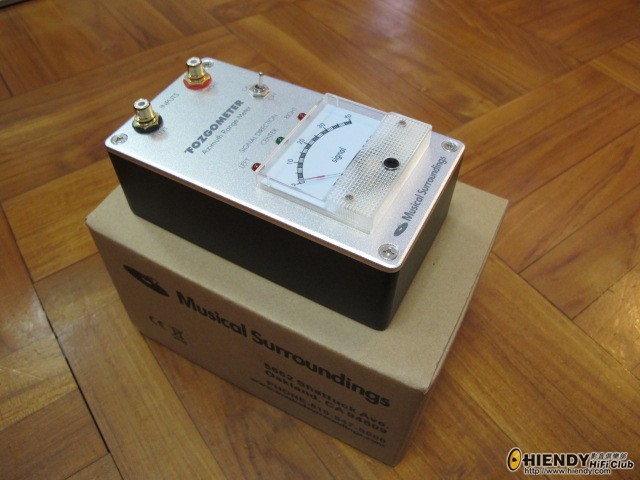

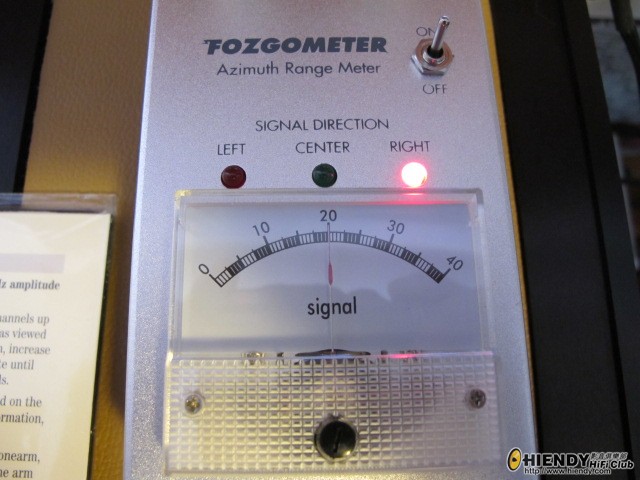

Stereophile Recommended Component.......Fozgometer Azimuth Range Meter

tckl

回復 1# Billy


    點用呢？

Billy

回復  Billy


    點用呢？
tckl 發表於 2011-8-8 18:08

用來調整水平方位角和channel separation and channel balance ，要加埋隻the ultimate analogue test lp


http://store.acousticsounds.com/ ... ntable_Set_Up_Tools

mr1010

印象中 這東西好似好貴。

Billy

用來調整水平方位角和channel separation and channel balance ，要加埋隻the ultimate analogue test l ...
Billy 發表於 2011-8-8 18:21

主要用隻LP第一面第一至第三track來調整，令左右聲道讀數一樣，如果唔一樣就將唱頭作左右水平調較！

Billy

印象中 這東西好似好貴。
mr1010 發表於 2011-8-8 18:24

HKD$2000貴唔貴？

samkong

BILLY HING HOW MUCH?

哈林

人耳 vs 機器   測試出尼個結果會唔會有差別呢?

Billy

人耳 vs 機器   測試出尼個結果會唔會有差別呢?
koolman 發表於 2011-8-8 18:44

未調之前，左右聲道讀數都好接近，有部機係到，當然要調到左右一樣。最後結果有機器幫助調整後，音像及層次明顯更好！
不過最慘就係我支SME V無得調Azimuth！要遲下得閒"攝"紙仔調較。

mr1010

其實原理係吾係量度兩邊的輸出電平呢？

Billy

其實原理係吾係量度兩邊的輸出電平呢？
mr1010 發表於 2011-8-8 20:27

應該係掛！
不過調較時，移動唱頭角度一至兩度己經有分別，所以要有D耐性小心調整。

Billy

應該係掛！
不過調較時，移動唱頭角度一至兩度己經有分別，所以要有D耐性小心調整。 ...
Billy 發表於 2011-8-8 21:03

尋日將個EMT JSD5仔細地調較後，不得了！弱音及細緻更明顯，左右聲道立體感更好！正！調整唱頭的azimuth係非常重要。



nagramen

Billy c-hing:
Please tell me where to buy. I am using SME IV arm.  Please PM me if not convenient to post here. Thanks a lot

Billy

Billy c-hing:
Please tell me where to buy. I am using SME IV arm.  Please PM me if not convenient to ...
nagramen 發表於 2011-8-9 21:24

www.anmprom.com.hk

nagramen

Billy c-hing, thank you very much

Billy

未調之前，左右聲道讀數都好接近，有部機係到，當然要調到左右一樣。最後結果有機器幫助調整後，音像及 ...
Billy 發表於 2011-8-8 19:04

今日用野'攝'支SME V將個Shure mm頭較正個Azimuth,原來相差好鬼遠, 這個shure可以好正!

nagramen

今日用野'攝'支SME V將個Shure mm頭較正個Azimuth
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Billy c-hing, Please explain a bit more about how to adjust Azimuth with SME IV or V (which have fixed head shells). After correct setting of VTA and alignment, is it okay to use paper to 攝 the gap between the cartridge and the head shell? If so, what kind of paper is good for this purpose? What are the recommended procedures? A lot of questions from a new-hand. Thanks a lot.

How about:
1) Set correct alignment with alignment tool
2) Set correct VTA (i.e. tonearm parralel to LP surface)
3) Set VTF (e.g. 1.5 gram)
4) Set anti-skate force (e.g. two-third of VTF)
5) Adjust Azimuth (use paper as needed)

One more question is that the tonearm cable 5-pin connector/socket of SME IV can rotate freely by 360 degrees. Would this rotation twist the internal wiring inside the arm tube and cause breaking? I wonder how the internal wires are connected to the 5-pin socket that can avoid twisting and breaking? Thanks again

Billy

今日用野'攝'支SME V將個Shure mm頭較正個Azimuth
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Billy c-hing, Plea ...
nagramen 發表於 2011-8-14 08:56

你調整唱頭步驟和我都差唔多，不過第一樣要set個唱盤平水先！

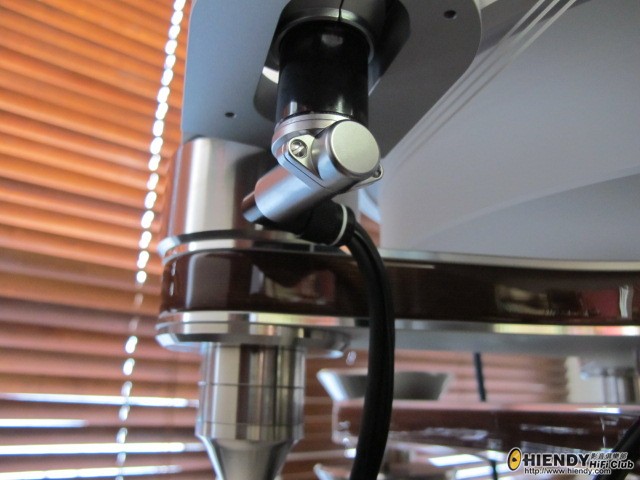

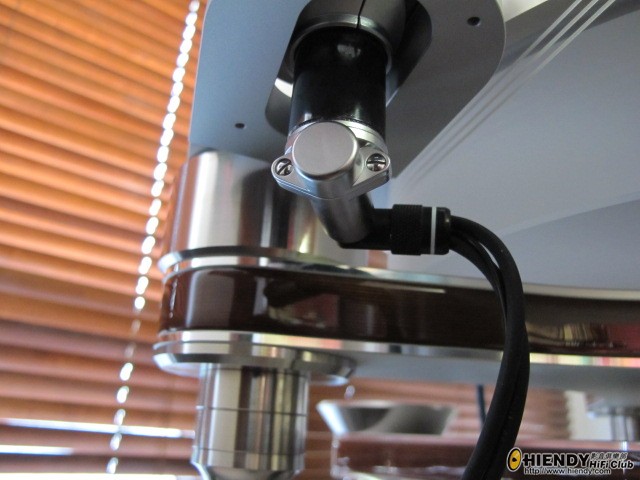

SME IV / V唱臂DIN頭接位唔應該可以360度轉，支臂裏面應有地方損壞。

nagramen

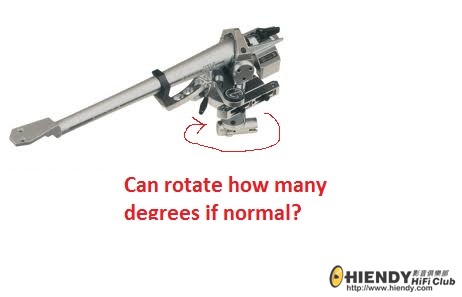

SME IV / V唱臂DIN頭接位唔應該可以360度轉，支臂裏面應有地方損壞
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> [attachimg]

C-hings,  請教 how many degrees the DIN connector can rotate if normal? Thanks a lot


59980[/attachimg]

Billy

SME IV / V唱臂DIN頭接位唔應該可以360度轉，支臂裏面應有地方損壞
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ...
nagramen 發表於 2011-8-15 18:39

可以320度轉
