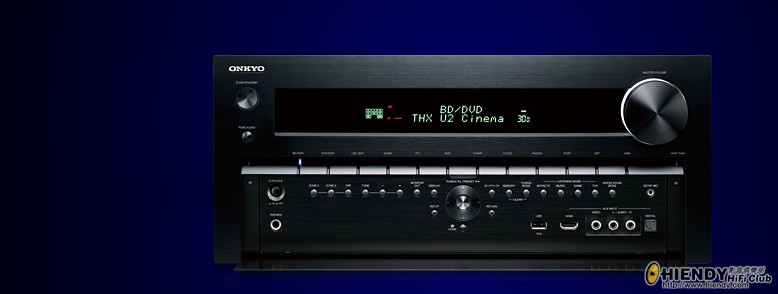

The TX-NR3009 sports a huge array of digital and analog connections, including eight 3D-ready HDMI® inputs, 9.2 multichannel pre-outs, and a USB input for connecting flash drives and digital audio players. An Ethernet jack, meanwhile, supports networked content in the form of internet radio and streaming audio from a PC or media server. Processing, too, is top-class. Audyssey MultEQ® XT32 achieves optimal balance for movie soundtracks and breathtaking realism for music sources. Along with sophisticated surround-sound technologies from Dolby and Audyssey, the TX-NR3009 employs DTS Neo:X™ to create an immersive nine-channel soundscape from any audio source. Video sources also get the red-carpet treatment, thanks to HQV® Vida™ processing, independent ISF calibration, and 4K upscaling via Qdeo™ technology. Onkyo’s dedication to build quality is reflected in the low-resonance chassis, multiple transformers, three-stage inverted Darlington circuitry, and high-grade audio terminals. All this and more earns the TX-NR3009 coveted THX® Ultra2 Plus™ certification—your guarantee of an ovation-worthy performance every time.
ADVANCED FEATURES
THX® Ultra2 Plus™ Certified
HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
VLSC™ (Vector Linear Shaping Circuitry) for All Channels
Massive Transformer and Two Separate Transformers for Audio and Video Processing
High-Quality HQV® Vida™ VHD1900 Video Processor
ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell
DTS Neo:X™, Audyssey DSX™, and Dolby® Pro Logic® IIz for Expanded Surround Channels
Audyssey MultEQ® XT32 to Correct for Room Acoustics
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Supports Onkyo Remote Apps for Control of A/V Receiver via iPod touch/iPhone*1 and Android Phone*2
Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)
Internet Radio and Music Streaming Connectivity (vTuner, Spotify, AUPEO!)*3
Bi-Amping Capability
Powered Zone 2/3 and Zone 2/3 Pre-Outs, and Zone 2 Video Out for Distributed A/V Playback in Multiple Rooms
Machined Solid Brass, 19 mm-Pitch Audio Inputs (TV/CD and Phono)
*1 Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.)
*2 Requires Android OS 2.1 or later.
*3 Availability of services depends on region.
OTHER FEATURES
Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI
Audyssey Dynamic EQ® for Loudness Correction
Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range
Dolby® Volume for Reference-Quality Listening at Any Volume
Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 800 ms in 5 ms Steps)
Tone Control (Bass/Treble) for All Channels
Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*
40 FM/AM Random Presets
Certified with Windows® 7 and DLNA Version 1.5
RIHD (Remote Interactive over HDMI) for System Control
Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen Setup, Mode-Key LEDs, and Macro Presets for Four Activities
*Note: Volume knob LED is always off when display is dimmed.
AMPLIFIER FEATURES
WRAT (Wide Range Amplifier Technology)
Three-Stage Inverted Darlington Circuitry
H.C.P.S. (High Current Power Supply) Massive High-Power Transformer
Linear Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
GENERAL SPECIFICATIONS
250 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, JEITA;
200 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, IEC;
170 W/Ch at 6 Ohms, 1 kHz, 0.1%, 2 Channels Driven, FTC
Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
WHD: 435 x 198.5 x 463.5 mm
Weight: 25.0 kg
PROCESSING FEATURES
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
TI Burr-Brown 192 kHz/24-Bit DACs (PCM1796 x 6) for All Channels
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Advanced Music Optimizer for Compressed Digital Music Files
Handles Playback of Mass Storage Class USB Memory
Theater-Dimensional Virtual Surround Function
Direct Mode and Pure Audio Mode
CONNECTION FEATURES
8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs
Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone
2 USB Ports (1 Front/1 Rear)
Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)
3 Component Video Inputs and 1 Output
5 Composite Video Inputs and 2 Outputs
4 S-Video Inputs and 2 Outputs
Analog RGB Input (D-sub, 15 pin) for PC Video
6 Digital Audio Inputs (3 Optical and 3 Coaxial)
8 Analog Audio Inputs and 1 Output
Phono Input
Color-Coded, 7.1 Multichannel Inputs
Color-Coded, 9.2 Multichannel Pre-Outs (Including 2 Independent Subwoofer Pre-Outs)
RS232 Port, IR Input/Output, and 12 V Trigger Out (Zone 2/3) |
|
