ACROLINK 全線新品線材

supercow

小弟最初入門玩音響時(大約2001年), 最喜愛係日系線材.原因係價錢相對歐美線材平, 而且日系線材講求係用料, 條條線都最少有6N, 多芯, 貴D就去到8N, 個頭亦係好有料. ACROLINK正是平靚正, 當時覺得買料到底.

最近幾個月, ACROLINK將全線產品升級...在此介紹下比大家.

8N 系列:
ACROLINK 8N-A2080Ⅲ

導體: Stressfree 8N銅0.18ΦX49熱 /冷（7 × 7）左手扭繩 /右手本
導體電阻: 隨著熱 /冷：17mΩ/米
靜電容: 57pF /米
阻抗特性: 110Ω（XLR）
端子：RCA
後厚鍍銀磷青銅和拋光兩次 50冷/熱銅 /鈹（1.5μ）高檔鍍白金 +（0.3μ）
端子：XLR
50高品質的鍍銠銅直冷/熱銅鈹 / Tiruru
連接器體
RCA：蓋 /碳纖維套管
XLR：磷青銅，從實木雕刻












Reference: http://www.highfidelity.pl/@main-163&lang=en

supercow

7N 系列:

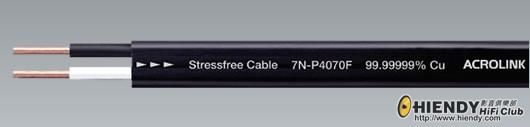

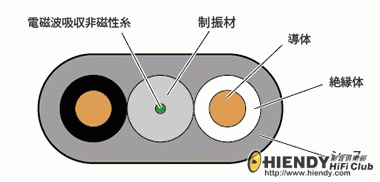

7N-P4070F





Conductors Stressfree 7N DUCC Extra thick copper ø2.6 x 2 wires
Resistance 3 mΩ/m
Insulation Polymer Polyolefin
Capacitance 25 pF/m
Max Current 50
Length 1~30m, unterminated, sold by the meter (cut from a reel, not returnable)
Weight 150g per meter

7N-4030II





Specification

Conductors :
D.U.C.C. Stressfree 7N copper
Diameter 0.26 x 100 strands x 2 (red and black)
Ground: 4N5 copper, Diameter 0.26 x 100 strands x 1 (green)

Conductor resistance: 2.9 mOhm/m
Electrostatic capacitance:13 pF/m
Maximum current: 50A/VCTF Standard
External Diameter: 14mm

7N-4020II





Conductors :
D.U.C.C. Stressfree 7N copper
Diameter 0.26 x 37 strands x 2 (red and black)
Ground: 4N5 copper, Diameter 0.26 x 37 strands x 1 (green)
Conductor resistance: 7.5 mOhm/m
Electrostatic capacitance:44 pF/m


7N-S1000III





Cable OD : 7.7 ~ 19mm
Conductor : This stress-free 7N Cu DUCC 0.26 X 37 stands X 2 ( red, black )
Insulator : Polyolefin resin Polymer
Conductor resistance : 7.5 mOhm/m
Capacitance : 11pF / m

7N-S1010III





Cable OD : 7.7 ~ 19mm
Conductor : This stress-free 7N Cu DUCC 0.26 X 37 stands X 2 ( red, black )
Insulator : Polyolefin resin Polymer
Conductor resistance : 7.5 mOhm/m
Capacitance : 78pF / m

ilccmcf

208,950円

Reference3

ACROLINK线由其是RCA手工靓到晕.日本仔精神!!

kachow

Reference3 發表於 2011-12-1 11:41
ACROLINK线由其是RCA手工靓到晕.日本仔精神!!

尤其佢個中空RCA, XLR頭, 真係宇宙最強..
