Metrum Acoustics Pavane Non oversampling DAC

ok102006

24-bit Non oversampling R2R DAC with transformers output

-Latest top-of-the-line from Netherlands.
-FPGA-driven forward correction module with three Xpresso clocks.

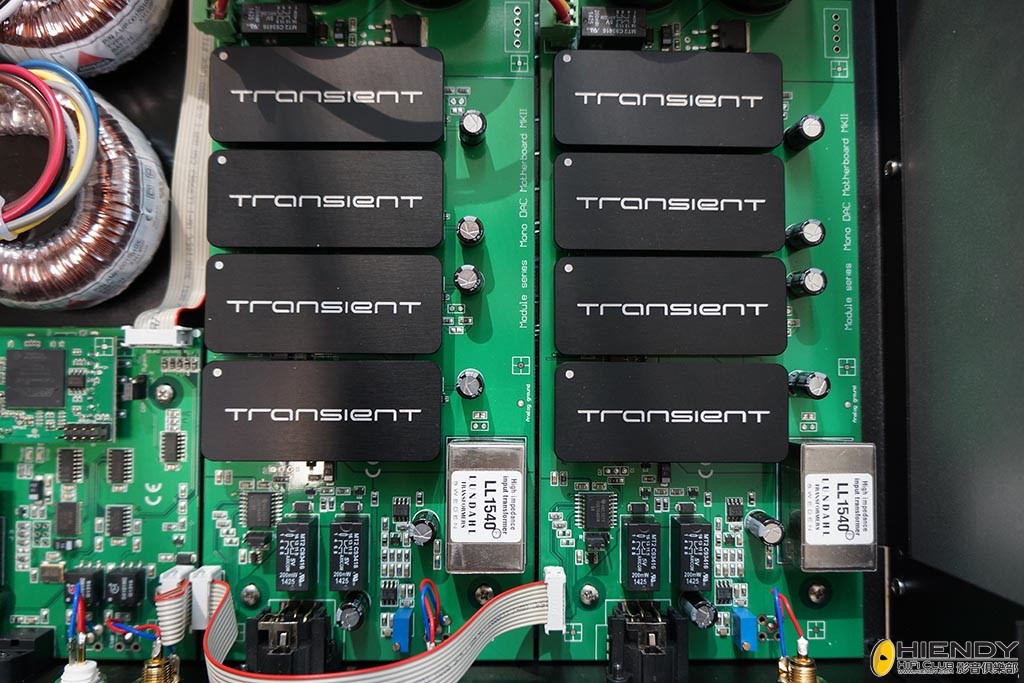

-Four DAC per channel in differential mode.
-m2Tech OEM USB (XMOS) with HLX clocks for the 44.1/48kHz sample rate families.
-Lundahl transformers output-Pavane's converters and I/V stage are potent enough to not require a conventional output stage.
-IEC power inlet with a Schurter module to filter AC line noise.
-Coaxial inputs use small isolation transformers.
-3 separate power transformers (Amplimo toroidal, made in UK), for two DAC board and FPGA board plus front panel.

Power supply: 45 VA.
Inputs: 1x optical Toslink, 2x coax (BNC and RCA), AES/EBU, USB
Sample rates: Optical 44-96kHz. Coaxial, USB and AES/EBU 44.1-192kHz. USB 44.1-384kHz
Outputs: 2x RCA gold plated Neutrik cinch connectors. 2x XLR balanced.
Output voltage: RCA - 2 Volt RMS max. XLR – 4 Volt RMS
Output impedance: RCA 100 Ohm, XLR 200 Ohm

Frequency response: 1Hz-20kHz (-2.5dB) at 44.1kHz sampling. 1Hz-65kHz (-3dB) at 192 and 384kHz (USB)
Distortion: 0.01% THD
S/N Ratio: -145dB at 2Volt RMS

Price: £3,849/€ 4.950 (black/silver)

blau.vol

Dear ok102006 hing,

The Pavane is on its way to Hong Kong our office ......  hopefully arrived in the end of this Month....  you may come and listen when you have time.

Cheers,
blau
VOLENT

xerxeshowie

ok102006

blau.vol 發表於 2015-4-10 22:15
Dear ok102006 hing,

The Pavane is on its way to Hong Kong our office ......  hopefully arrived in  ...

wow, you got so many "toys" to play with

dominiquetu

This is one of the best secret in High-end DAC ! ! !

Metrum is the highest C/P DAC brand I ever tried ! ! !

blau.vol

ok102006 發表於 2015-4-10 22:26
wow, you got so many "toys" to play with

Hi Ok102006 hing,

I am a R2R DAC fans,  and NOS DAC lover too!  All TotalDAC, Rockna and Metrum are NOS dac or got NOS mode.....

let you know when it arrive!!!

Cheers,
Blau

CAS2012

Ben, when I got a second hand Metrum Octave DAC not long ago, I did not expect much surprise from this little NOS DAC. I was using ESS9018 DAC. However, when I settled down some time with NOS R2R Metrum DAC, I found the music just flows out as it should be, I do not care about the bass slam, the highest pitch, just let it sings, that is music that I finally looking for a DAC. I sold my ESS9018 DAC last week.

Looking forward to listen to the Metrum flagship DAC. May be it is another surprise.

ok102006

CAS2012 發表於 2015-4-12 14:03
Ben, when I got a second hand Metrum Octave DAC not long ago, I did not expect much surprise from th ...

agree, I am expecting this Metrum would be the most natural sound DAC under HK$50k

dickdoggie

ok102006 兄，請問那DAC是否適用於SACD player？能解讀DSD data？謝謝！

ok102006

dickdoggie 發表於 2015-4-19 08:22
ok102006 兄，請問那DAC是否適用於SACD player？能解讀DSD data？謝謝！

no DSD, most R2R DAC have no support for DSD.

support 24bit input
Optical 44-96kHz
Coaxial and AES/EBU 44.1-192kHz
USB 44.1-384kHz

dickdoggie

謝謝ok102006回覆！也就是說：那DAC若用於SACD player的話，只對改善CD的播放有幫助，對嗎？

dickdoggie

此外，CH Precision一類DAC又是否可以兩者兼得？

ok102006

dickdoggie 發表於 2015-4-19 14:38
此外，CH Precision一類DAC又是否可以兩者兼得？

DAC不同價位,分別很大,比不了的
一般選用 R2R DAC 是因為它音色比較自然, 要兩者兼得(support DSD)當然可以,但價位會是80k以上

ok102006

dickdoggie 發表於 2015-4-19 14:36
謝謝ok102006回覆！也就是說：那DAC若用於SACD player的話，只對改善CD的播放有幫助，對嗎？ ...

對, 但要DAC比你的SACD player解碼更強才有幫助
另外不是所有 SACD player 可以輸出DSD的訊號

dickdoggie

ok102006兄說的是。平心而論，您認為該DAC對提升Esoteric K-01一類SACD player有多大幫助呢？謝謝！

ok102006

dickdoggie 發表於 2015-4-19 17:11
ok102006兄說的是。平心而論，您認為該DAC對提升Esoteric K-01一類SACD player有多大幫助呢？謝謝！ ...

K-01, I will 加鐘 instead

blau.vol

CAS2012 發表於 2015-4-12 14:03
Ben, when I got a second hand Metrum Octave DAC not long ago, I did not expect much surprise from th ...

Dear CAS2012,

SORRY for LATE REPLY!

the Metrum Octave MK II got very good in sonic ,  definitely! NOT high definition type but very musical!  it is a really good NOS DAC.

I have high expectation no Pavane too!!!  will let us know when it arrived .

Cheers,
Blau

blau.vol

dickdoggie 發表於 2015-4-19 08:22
ok102006 兄，請問那DAC是否適用於SACD player？能解讀DSD data？謝謝！

Dear dickdoggie,

Sorry , the Metrum Pavane cannot handle DSD signal ,  no matter via USB or Coaxial input.  However,  with Audiobyte Hydra Z  USB Bidge ,  we can have HydraZ to do the DSD to PCM cnversion using its Femto clock in on the fly manner!   We will provide promotional price if you buy two items together!

will update you when it arrived.

For SACD Player,  we have TotalDAC,  Rockna DAC,  Audiobyte BlackDragon can do DSD decoding via Coaxial/AES inputs.

Cheers,
blau

blau.vol

ok102006 發表於 2015-4-19 13:31
no DSD, most R2R DAC have no support for DSD.

support 24bit input

dear ok102006 hing,
yes, you are correct!  Metrum Pavane cant do the DSD job at the moment.....

but Many Latest R2R dac can do DSD decoding as well!  Rockna WaveDream DAC and TotalDAC d1-single and d1-dual can do the DSD decoding .  they can decode SACD DSD via USB/HDMI , Coaxial and AES as well!

Best,
Blau

CKKeung

blau.vol 發表於 2015-4-20 10:36
dear ok102006 hing,
yes, you are correct!  Metrum Pavane cant do the DSD job at the moment.....

Ben Sir : MSB can do so too!
