[黑膠系統] 德國Audiodesksysteme - Ultrasonic Vinyl Cleaner Pro 超聲波洗碟機

[複製鏈接]
發表於 2016-10-5 13:22:04 | 顯示全部樓層 |閱讀模式
本帖最後由 Avantgarde-HK 於 2016-10-5 13:33 編輯

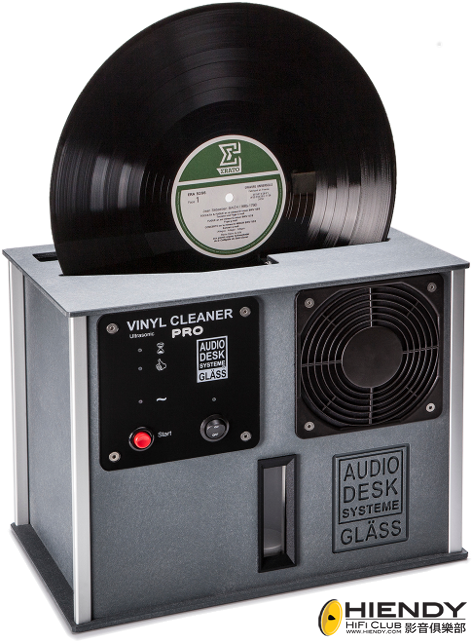

AUDIODESKSYSTEME VINYL CLEANER PRO

Records are precious:

Not only because they are excellent sound carriers. Often the so-called "black gold" is an irreplaceable collector's item. Even when great care is taken, in the long time it is inevitable that records get dirty.

A gentle cleaning of the disc is particularly important to preserve its value. Reiner Gläss, the brain behind Audiodesksysteme, has developed a professional yet comfortable LP-washing machine – the "Vinyl-Cleaner". The Vinyl Cleaner is a fully automated machine that sets new standards in user-friendlyness.

January 2016 has seen the release of the newest Vinyl Cleaner evolution stage: The Vinyl Cleaner PRO! The PRO-version features an independent drying process that is not coupled with the washing procedure, better water drainage and other improvements.

Operating the Vinyl Cleaner PRO is very simple: Just insert the disc into the machine's opening and press the red button. A yellow LED lights up and the gentle cleaning process runs fully automatically. Thereby counter-rotating microfiber cleaning barrels and ultrasonic waves softly remove even deep-sitting dirt particles from the record grooves. During operation the machine permanently filters the cleaning fluid. Afterwards two special high-performance motors guarantee an effective drying procedure of the record – at very low volume levels. When, after a short period of time, the green LED lights up the cleaned disc can be removed from the apparatus.


Colors: grey, white, red, black
Cleaning cycle: 5 minutes
Dimensions: 33cm wide x 20cm deep x 27cm high
Weight (empty): 5,5 kg
Water capacity: 4,5 Litres, cleaning concentrate 20 ml
Manufacturer’s guarantee: 2 years / Made in Germany

發表於 2016-10-12 13:26:14 | 顯示全部樓層
呢部紅色好靚呀!

回復

使用道具 舉報

 樓主| 發表於 2016-10-14 16:55:00 | 顯示全部樓層
2105 Stereophile-Editor's choice 2015-stereophile-Editors-Ch.jpg
回復

使用道具 舉報

 樓主| 發表於 2016-10-19 16:46:21 | 顯示全部樓層
回復

使用道具 舉報

發表於 2016-10-29 16:31:45 | 顯示全部樓層
今天拿了隻LP 去聲望試用Audiodesksysteme Vinyl cleaner Pro. 聽得出真係比我部VPI 洗完再靜D,透明度高咗。成套系統都升級咗!
回復

使用道具 舉報

發表於 2016-11-5 11:31:07 | 顯示全部樓層
Pro 版確實靚聲過之前
回復

使用道具 舉報

 樓主| 發表於 2016-11-14 16:50:06 | 顯示全部樓層
The Audio Desk Systeme Vinyl Cleaner Pro Record Cleaner is the new & improved version of the multi-award winning cleaner: Stereophile Product Of The Year, TAS Product Of The Year, Golden Ear & Editors' Choice Award Winner!

The highly acclaimed Audio Desk Vinyl Cleaner Pro is a revolution in record cleaning!

What makes the Audio Desk Systeme Vinyl Cleaner Pro Record Cleaner stand out from its contemporaries is its advanced ultrasonic cleaning cycle, which makes it the first and only of its kind. It doesn't stop there, though. The Vinyl Cleaner Pro also boasts a more traditional cleaning technique through bi-directional rotating microfiber cleaning drums. The ultrasonic cleaning coupled with the cleaning drums results in the most effective vinyl cleaner on the market.
回復

使用道具 舉報

 樓主| 發表於 2016-11-28 17:30:05 | 顯示全部樓層
TECHNICAL: HOW CAN SOUND CLEAN?

A physical effect called "cavitation" results from the generation of ultrasonic frequencies in a liquid. In this cavitation process ultrasonic "compression waves" are created by an ultrasonic transducer. When the amplitude of this soundwave increases to a level where the surface tension of the liquid is broken, the fluid will "tear" apart leaving behind millions of microscopic vacuum bubbles. These vacuum bubbles then rapidly compress or implode creating millions of tiny liquid jets small enough to clean inside the smallest grooves of an LP. This process, also called "microagitation," displaces any contaminants on the surface of the LP.

回復

使用道具 舉報

 樓主| 發表於 2016-12-12 11:50:56 | 顯示全部樓層

-safe low level ultrasonic to dislodge contaminants all the way to the bottom of the LP groove,

-bidirectional surface cleaning using microfiber-covered barrels, which also manages fluid motion to wick contaminants away from the LP surface,

-fluid filtration to remove contaminants,

-filtered air drying to avoid the introduction of a dust-attracting static charge to the LP surface,

-one button full automation.

回復

使用道具 舉報

 樓主| 發表於 2016-12-29 12:09:40 | 顯示全部樓層
NEW IMPROVED VERSION.
新的Vinyl Cleaner Pro 改良了機械設計,包括更好的驅動達,泵裹改用陶瓷軸承和額外的吹乾過程。放善清潔和乾燥循環及壽命。良好的超聲波清潔效能保持不變。


用Audiodesksysteme Vinyl Cleaner Pro 超聲波洗碟機清潔後的LP聲音具有更大的音場,更大的動態,平衡度更佳,能顯示更多的細節。超潔淨的表面導致較少的觸針磨損,更令各下珍貴唱片得以妥善的保護.
回復

使用道具 舉報

 樓主| 發表於 2017-3-6 12:04:39 | 顯示全部樓層
新Pro 版除改良清潔程序外,還改善耐知程度!
回復

使用道具 舉報

發表於 2017-4-6 13:55:17 | 顯示全部樓層
新Pro版比舊版音效更零靜.  代理還提供Trade in 服務.
回復

使用道具 舉報

發表於 2017-4-6 14:25:23 | 顯示全部樓層
how much ?
回復

使用道具 舉報

發表於 2017-4-6 23:14:30 | 顯示全部樓層
Pm sent!
回復

使用道具 舉報

 樓主| 發表於 2017-6-13 14:53:38 | 顯示全部樓層

Audio Advisor - Kaan Explains the Audio Desk Vinyl Cleaner Pro
回復

使用道具 舉報

 樓主| 發表於 2023-12-9 11:12:22 | 顯示全部樓層

Audiodesksystme Vinyl Cleaning Pro X 始終最好!
回復

使用道具 舉報

 樓主| 發表於 2024-5-20 15:28:48 | 顯示全部樓層
WhatsApp 圖片2024-05-2015.23.08_87111041.jpg

audiodesksysteme 在 2024 Munich HiEnd 發表 Vinyl Cleaning Pro X 的 新版本, 機是可以打開以便維修用.

回復

使用道具 舉報

 樓主| 發表於 2024-12-20 15:14:22 | 顯示全部樓層
WhatsApp 圖片2024-12-2015.13.37_85a39bf4.jpg

Vinyl Cleaner Pro X
回復

使用道具 舉報

 樓主| 發表於 2025-9-20 12:45:52 | 顯示全部樓層
541152954_1207711408039807_160818836378759945_n.jpg 542145114_1207711418039806_372319847038968742_n.jpg

Audiodesksysteme Vinyl Cleaning Premium 超聲波洗碟機。洗碟機之皇者。
